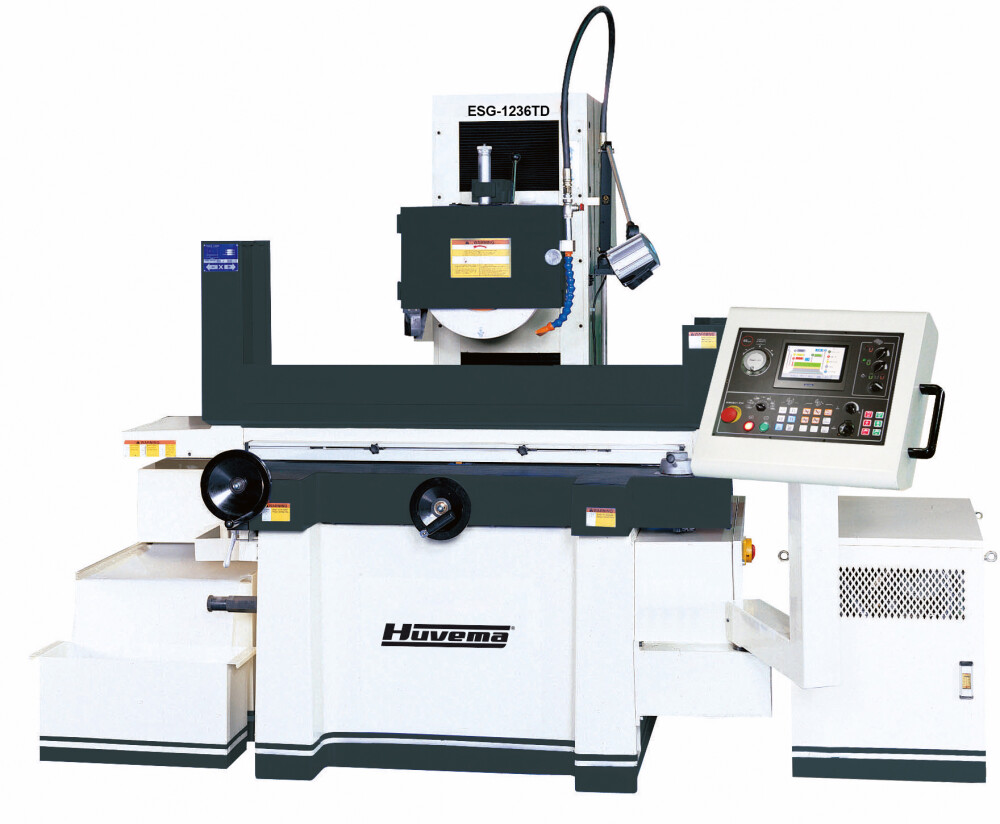

Surface grinder 14365 ModelESG-1236TD EAN8718242161626 Surface Grinding Machine Read more View other versions Product info Description Manufacturer Specifications Documents Transport Rental Surface Grinding Machine Technical specifications Max. distance spindle table 630 mm Table size 305 x 915 mm Max. grinding length 915 mm Max. grinding width 330 mm Standard magnetic chuck size 300 x 900 mm Max. movement - hydraulic 960 mm Max. movement - manual 1000 mm Max. Movement - infinite variable 60, 5-25 ; 50, 5-20 m/min Auto. transverse increment 1-25 mm Auto. constant feeding speed 20-320 mm/min Max. auto. transverse displacement 350 mm Max. manual transverse travel 380 mm Mpg per revolution 5 mm Mpg per degree 0,02 mm Automatic infeed 0.001-0.05 mm Mpg per revolution (optional) 1 mm Mpg per degree (optional) 0,005 mm Speed of grinding spindle 60, 1750 ; 50, 1450 Diameter Grinding wheel 355 mm Width grinding wheel 50 mm Shaft hole grinding wheel 127 mm Hydraulic engine 2,2 HP/P Motor power supply 0,75 kW/Servo Lifting motor 1 kW/Servo Grinding spindle power 8 HP/P Voltage 400 V Video Transport Article number 14365 Barcode8718242161626 Product groupIndustrie (EU) Volumetric weight40000 HS code84659300
